Easy operation with a clear layout and display, slot illumination and an Automatic IV Set Connection Function.
More information about this product? Feel free to contact us.

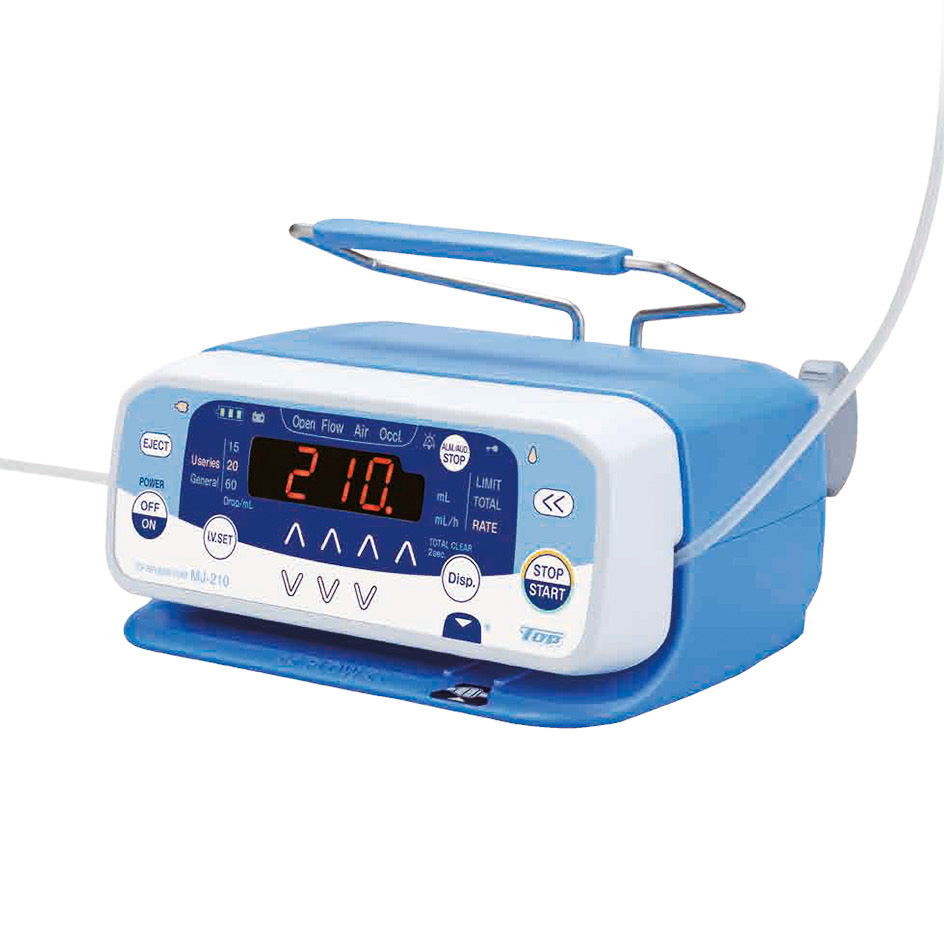

TOP MJ-210 Infusion Pump
TOP Infusion Pump MJ-210 is an electric pumping device, widely applied for infusion therapy by administering and controlling the infusion fluids as preset. It has two modes of operation. A general mode, with use of any compatible infusion set, and the ‘U-Series’ mode, a more accurate and controlled proces with a dedicated infusion set from TOP Corporation.
The slot in front of the device is used to align the infusion set properly. When guided through, it will connect automatically. Very efficient in your process, and it reduces the chance of error significantly.
Safety
Alarms are audible and visible, through buzzers and coloured lights. The internal battery may last for up until 4 hours when full, to ensure continued infusion during any power outage or transport.
Specifications
- Infusion Sets: TOP Solution Infusion Set U-Series (recommended), General Infusion Sets (various brands)
- Flow Rate Range U-Series Mode: 0,1 ml/h – 99,9 ml/h (0,1 ml/h increments), 100 ml/h – 1.200 ml/h (1 ml/h increments)
- Flow Rate Range General Mode: 15 drops/ml: 1 – 400 ml/h, 20 drops/ml: 1 – 360 ml/h, 60 drops/ml: 1 – 150 ml/h (1 ml/h increments
- Purge Flow Rate: Max. Flow Rate in Infusion Mode
- KVO Flow Rate: 0,1 – 5,00 ml/h
- Volume Limit Range: 0,1 – 9.999,9 ml (0,1 ml increments)
- Total Volume Range: 0,0 – 9.999,9 ml (0,1 ml increments
- Infusion Accuracy U-Series Mode: ±5% (IEC60601-2-24, Clinical situations)
- Infusion Accuracy General Mode: ±10% (IEC60601-2-24, Clinical situations, Water or Saline)
- Occlusion Detection Downstream U-Series: High 120±30 kPa, Medium 90±30 kPa, Low 60±30 kPa, Lowest 30±20 kPa
- Occlusion Detection Downstream General: High, Medium, Low, Lowest
- Air-in-Line Detection Sensitivity: High, Medium, Low
- Alarms: High Priority, Low Priority, Information Signals
- Dimensions and Weight: 180 x 113 x 202 mm, approx. 1,8 kg (including clamp and battery)
Special Functions Include
Automatic Infusion Set Attaching Function, Infusion Set Setting Function, Anti-Bolus Function, KVO (Keep Vein Open) Function, Standby, Auto Power Off, Repeat Alarm, Buzzer Setting, Power Supply Switch Notice, Key-Lock Function, Maintenance Timer, History Function, Alarm Setting Confirmation Function
(Find the list of specifications, functions and their explanations in the TOP MJ-210 brochure).
