TOP Corporation’s reputable, full-featured syringe pump, equipped with TIVA and PCA. Trusted pump technology for IV Anesthesia.
More information about this product? Feel free to contact us.

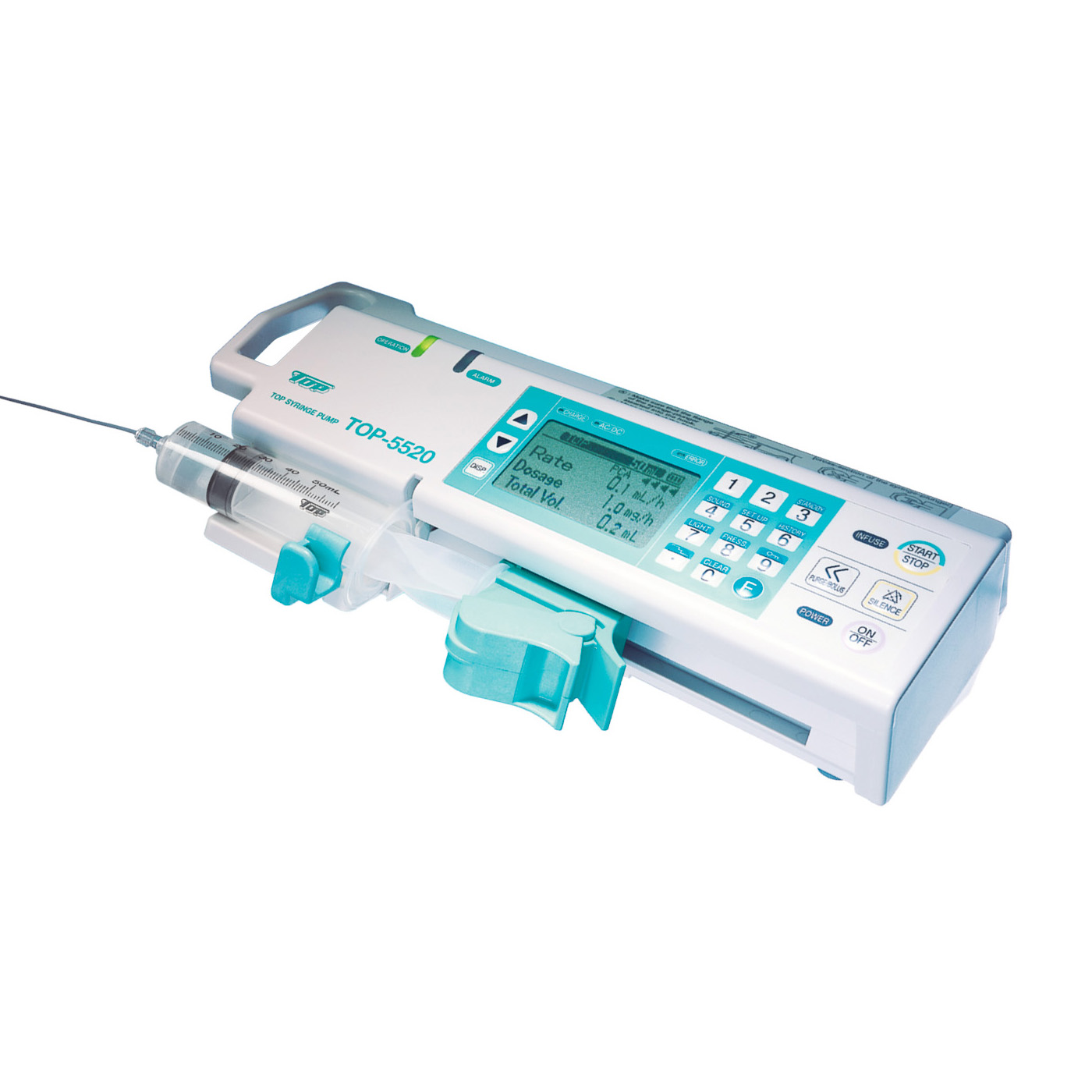

TOP-5520 Syringe Pump
The TOP-5520 Syringe Pump produces a continuous and rapid injection, with minimum trace of the infusion solution for the patient in order to achieve TIVA (Total Intravenous Anesthesia) and PCA (Patient Controlled Analgesia). TOP-5520 can also be used for epidural anesthesia or regular infusion.
Continuous Flow, Bolus, TIVA and PCA
When the pump is in TIVA mode, the dosage can also be set in µg/kg/min or mg/kg/h. The pump automatically calculates flow rates based on set parameters. Flow rates can be changed and an additional bolus can be delivered without interrupting the infusion.
Safety
Alarms are audible and visible, and they can be configured. The internal battery will last around 12 hours when full, to ensure continued operation during power outages or transport. Using AA Alkaline batteries this may even go up to 24 hours.
Specifications
- Compatible Syringes: 10, 20, 30, 50 ml (various brands)
- Flow Rate Range TIVA Mode: 0,1 – 300 ml/h to 0,1 – 1.200 ml/h depending on syringe size
- Flow Rate Range PCA Mode: 0,1 – 150 ml/h for each syringe size
- Agent Range: 0,1 – 1.000,0 mg
- Solution Range: 0,1 – 1.000,0 ml
- Weight Range: 0,1 – 300,0 kg
- Dosage Range TIVA Mode: 0,01 – 99,99 μg/kg/min, 0,01 – 99,99 mg/kg/h
- Dosage Range PCA Mode: 0,1 – 99.999,9 μg, 0,1 – 9.999,9 mg/h
- Volume Limit: 0,1 to 1.000,0 ml
- Total Volume Display Range: 0,1 to 1.000,0 ml/span>
- Infusion Accuracy: Mechanical ±1%, including syringe ±3%
- Purge and Bolus Flow Rate TIVA: approx. 300 ml/h to 1.200 ml/h depending on syringe size
- Bolus Volume: 0,1 – 50,0 ml (0,1 ml steps), 0,1 – 50.000,0 μg (0,1 μg steps), 0,1 – 5.000,0 mg (0,1 mg steps)
- Bolus Accuracy: ±3% (±0,1 ml at 0,1 to 3,3 ml setting)
- Occlusion Detection Pressure: High, Middle, Low, Very Low
- Lockout: 1 – 120 minutes (one-minute steps)
- Bolus Limit: 1 – 24 hours (one-hour steps), 1 – 10 times (one-time steps), ml: 0,1 – 50,0 ml (0,1 ml steps), μg : 0,1 – 50.000,0 μg (0,1 μg steps), mg : 0,1 – 5.000,0 mg (0,1 mg steps)
- Alarms: High Priority, Low Priority, Information Signals
- Dimensions and Weight: 320 x 90 x 160 mm, 2,0 kg
Special Functions Include
Auto Power Off, Alarm Reminder, Buzzer Setting, Power Supply Switch Alarm, History Function, PCA History Printout, Standby, KVO (Keep Vein Open), Key Lock, External Communication Function, Syringe Brand Limit Function, Infusion Mode Limit Function, Dose Unit Limit Function, Volume Limit Display Switching Function, Battery Refresh, Maintenance Timer, Flow Rate Upper Limit Value Setting, User Syringe Registration Function
(Find the list of specifications, functions and their explanations in the TOP-5520 brochure).
